METIS S1
METIS-6S compact machine room passenger elevator inherits METIS-6 safety concept, to meet personalized customization requirements.
Product Features
Independent Control Board + Independent Inverter
Faster, more stable, scalable, with added safety features. More than 6,000 units have been installed in Singapore and exported to 33 countries. With 12 years of experience, more than 10,000 units have been installed, focusing on export and giving back to China.
3D Light Curtain
The quantity of infrared beams increased to 194, which is 100 beams more than a normal 2D light curtain. It adopts 3D stereo detection for the landing door entrance area.
Roller Guide Shoes
Flexible support with automatic compensation for guide rail installation error and tolerance in form and position. Suitable for elevators with speed v ≤ 6 m/s.
Guide Rail
The car guide rail is upgraded to T90/BE high-precision guide rail, while the counterweight guide rail is upgraded to T75-3/B solid guide rail.

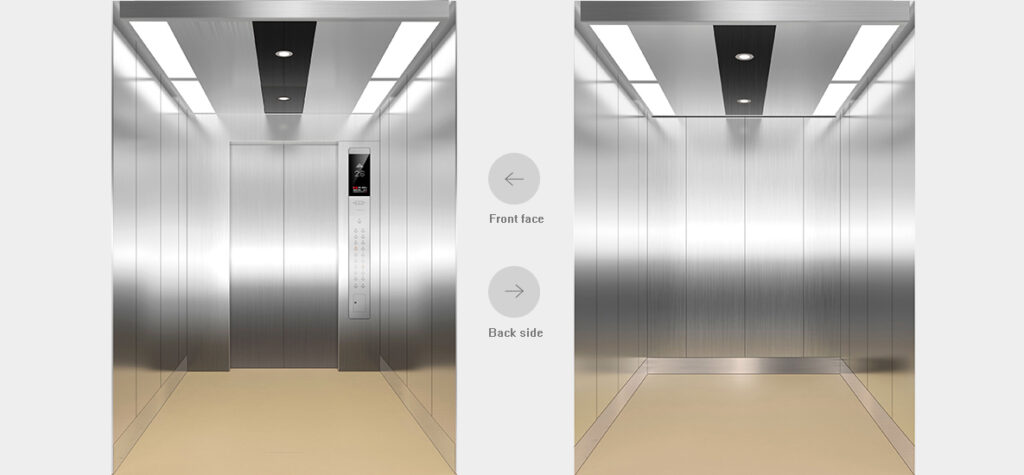

Cabin
Well-designed with car height of 2600 mm and door opening height of 2200 mm. Cabin walls use δ1.5 SUS304 stainless steel + δ1.5 SUS304 mirror stainless steel etching. Ceiling uses δ1.5 SUS304 stainless steel + LED light + mirror stainless steel etching. The COP features an 8.4-inch multimedia LCD display, soft light buttons, and voice announcements as standard functions.
Humanization Designed Cabin Space
For the same shaft size, the cabin can adopt a wide car design for better passenger comfort, or a deep car design suitable for carrying furniture. For example, the 800 kg load deep cabin can easily accommodate a 1.8 m wide mattress.
Parameters & Optional Functions (METIS-6S)
- The HOP can be customized, including cabin decoration suitable for luxury hotels, high-end offices, or high-end residential buildings; button types, keyboard touch, LCD touch, one-card type, destination type, and building-integrated type.
- Community one-card security system can be customized, directly combined with the community IC card.
- Community visitor security system can be customized, integrated with the community intercom system without extra equipment.
- Destination floor group control system can be customized to enhance transportation efficiency and reduce passenger waiting time.
- Energy regeneration system can be customized. Energy generated by the elevator can be converted into electricity to save energy.
Note
The above overhead height is based on 150 mm ceiling thickness. The overhead height will change according to different ceiling thickness.
